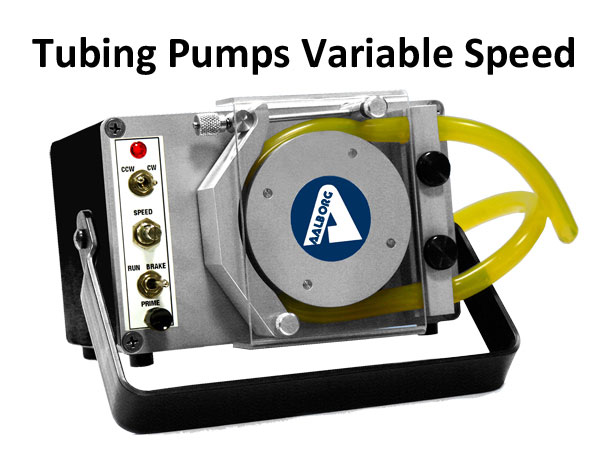

TPU Peristaltic Pump Heads
Peristaltic pump designed to move liquids of low to high viscosity from source to destination at user-set speeds according to the motor installed.
Principle of Operation
Flexible tubing, which conveys fluid from source to destination, is squeezed inside the pump head by rotating rollers against a rigid, crescent-shaped occlusion wall. The rollers induce suction in a gently pulsing rhythm. The occlusion is adjustable to increase pressure, or to decrease pressure for extended tubing life.

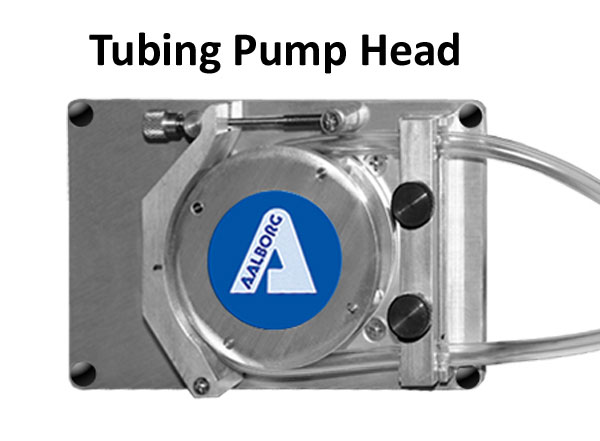

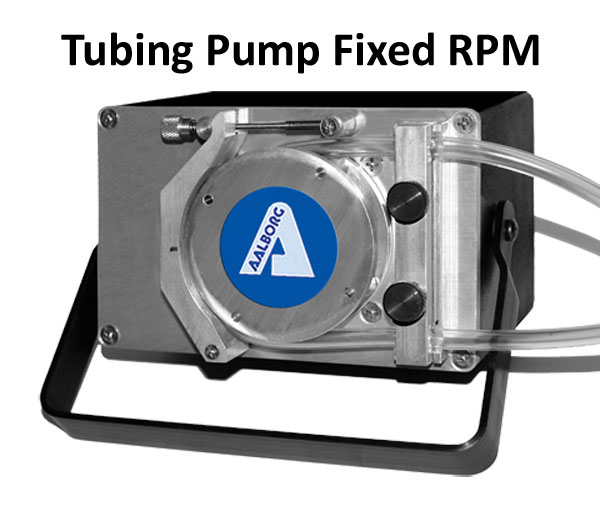

Each pump head is mounted on a front panel, with the adjustable occlusion wall and a safety cover.
SPECIFICATIONS |
TUBING INSIDE DIAMETERS: 1/8 in., 3/16 in., 1/4 in. or 5/16 in. |
TUBING WALL THICKNESS: 1/16 in. |
RECOMMENDED TUBING MATERIALS: Tygon® E-3603, peroxide-treated silicone, platinum-treated silicone, PharMed®, Versilic® silicone, Tygon® Sanitary silicone, Norprene®, Tygon® Long Flex Life, and Hypalon® |
MAXIMUM LIFT, PUMP HEAD: 340 in. H2O (12.3 psig) |
MAXIMUM SUCTION, PUMP HEAD: 350 in. H2O (12.6 psig) |
DIMENSIONS: 6.50 in. (165 mm) wide x 4.12 in. (105 mm) high x 1.61 in. (41 mm) deep |
MATERIALS OF CONSTRUCTION: anodized aluminum, 316 stainless steel rollers and shafts |
PUMP FLOW RATES
TPU1 Pump Flow Rates with 4 Rollers
TPU2 Pump Flow Rates with 10 Rollers
(NOTE: the use of 5/16 in. tubing is not recommended with this option)
